Function

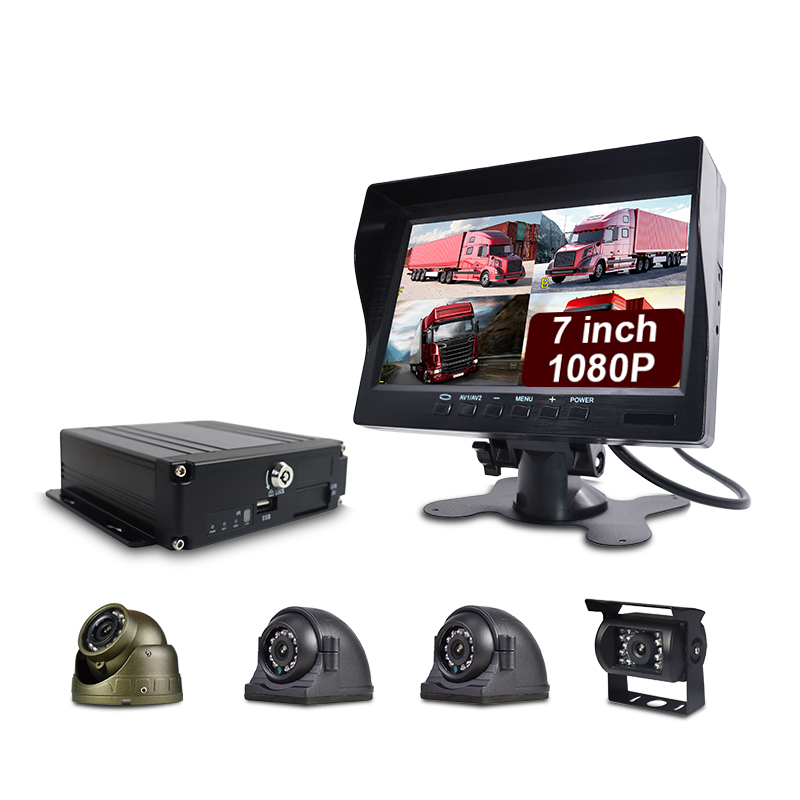

2, real-time HD video recording, video resolution 1080P/720P/D1/HD1/CIF optional, adjustable frame rate quality, can be mixed with 2 analog 2 channel HD AHD car camera.

3. Professional file bare disk system, multi-language selection (Simplified Chinese, English, Traditional Chinese, Russian, Korean), 4-channel alarm input, alarm linkage function, 2-channel alarm output . (Trigger reversing full screen)

4. Parking recording function (time can be set up to 1440 minutes) – automatic recording, manual recording, alarm recording and other recording methods

5、Built-in imported power supply chip, wide voltage design, support +10V to +36V voltage input, very strong stability, 4-channel 12V camera power supply output

6、Can set the mainframe low voltage automatic shutdown (thus reducing the loss of the battery)

7、Support mouse function and USB backup

8、Can set the reverse guide line

9, can set the camera output (mirror image, normal image, left image, right image)

10, aviation/ audio and video connectors, better stability; VGA HD terminal output.

11, video automatic loop coverage, maximum support 256G SD card

12, WIFI/3/4G support remote positioning, remote video real-time viewing, online download files, walkie-talkie function, (need to download the computer side and cell phone side)

13, support external serial port expansion, such as: fuel consumption sensor, TTS voice, speeding alarm voice, ADAS + DSM, BSD, temperature and humidity sensors, card reader, PTZ , etc.

14、Net weight: 550g     MDVR size: L-140MM W-154MM H-41.5MM
