Super HD Camera: 6 layer glasses lens with an ultra wide 130°viewing angle, the backup camera will provide a complete view from behind your vehicle. This ensures complete safety with no blind spots.
Excellent waterproof design: Completely waterproof with an IP68 rating. Is means the cab cam camera will work fine in all weather conditions.
AWESOME Night Vision: With 18 infra-red lights, the trailer rear view camera will be able to see up to 50ft even in complete darkness! This night vision will be even without any ambient light at all.

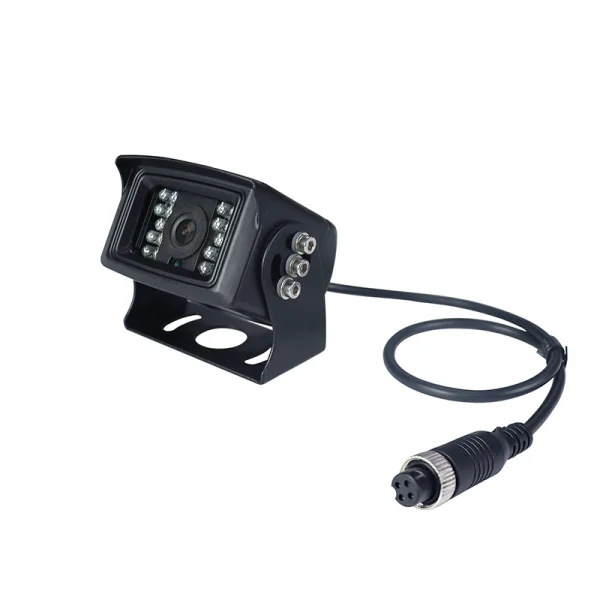

Premium Quality Reverse Camera Case Design: It’s finished in a unique zinc metal casing, stainless steel screw makes it without rust problem.
| Model Number | RD-DC004 |
| Brand Name | HOPE |
| Type | Reverse Camera, Backup camera, Monitor |
| Resolution | 720P; 1080P |
| Image Sensor | 1/2.9＂GC2053 CMOS |
| TV system | PAL/NTSC (Option) |
| Light Compensation | Infrared |
| View Angle | 70°；95° |
| Waterproof | IP68 |
| Electronic Shutter | 1/50-1/100000S,1/60-1/100000s |
| Image Frame Rate | 1080P@25fps / 1080P@30fps |
| Minimum Illumination | 0.01 Lux / F1.2 |
| AGC | Auto |
| White Balance | Auto |
| Backlight Compensation | Auto |
| Signal Output | AHD |
| Video Output | 1.0V P-P/75Ω |
| Connector | RCA or 4Pin (Option) |
| Signal to Noise Ratio | ≥46dB |
| Mirror/Normal Image Adjustable | Adjustable |
| Parking Line | Triple Colors (Option),Adjustable |
| Current Consumption | ≥150mA |
| Power | ≥2W |
| Operating Temperature | –20℃ ~ 75℃ |
| Storage Temperature | –30℃ ~ 85℃ |
| Light q'ty | 18 Light |
| cover material | metal |
| Net weight | 460G |
| Product packaging | Color box,135*85*55mm |
| Warranty | 1 Year |
| Place of Origin | Guangdong, China |
* The product specifications listed above are indicative only. For full details and technical documents, please reach out to our customer support.
