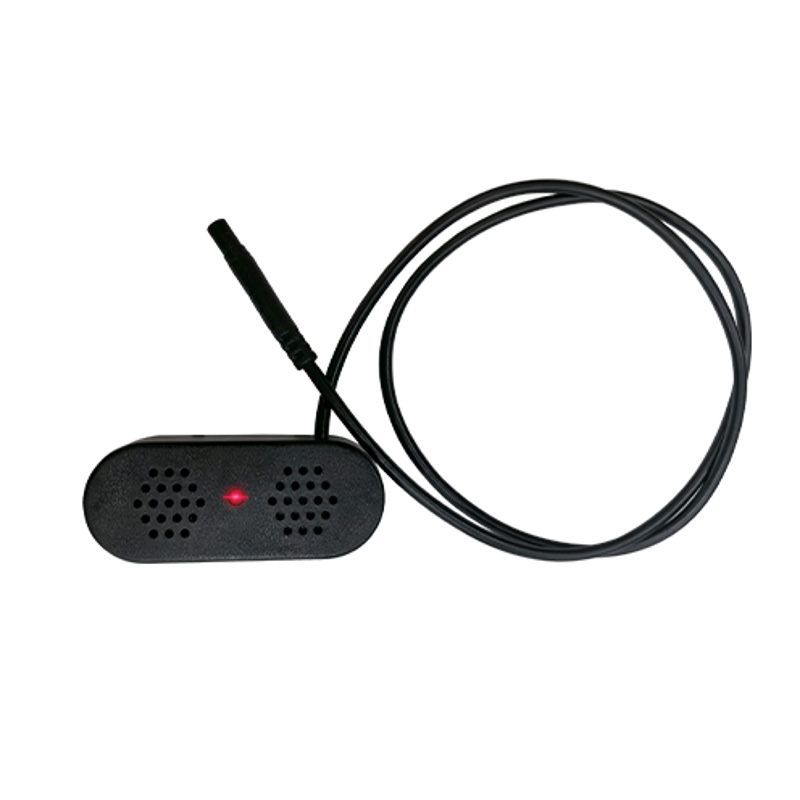

11Ghz Radar Camera BSD Monitoring Truck anti-collision system / R2

  • better than 0.1m
  • detection and alarm distance: 3m
  • ange resolution: 0.01m
contact us
OVERVIEW
ATTRIBUTES

Suitable for low-speed, close-range reversing: This system perfectly solves the "close-range blind spot" problem encountered when reversing or maneuvering large vehicles. For example, when reversing a truck, it monitors walls and pedestrians within 1-3 meters behind it, providing a graded warning with a buzzer (the closer the distance, the more urgent the warning), preventing scratches.

Flexible and low-cost installation: It can be installed on the front and rear bumpers of the vehicle, as well as on both sides of the cargo box (compared to other radars, 11GHz radars are more cost-effective). It requires no complex debugging and is suitable for low-cost mass assembly (for example, agricultural grain transport vehicles and small and medium-sized construction vehicles).

11GHz millimeter-wave radar: Accurately detects objects at short ranges and can identify dynamic targets (such as moving vehicles and pedestrians) at a range of up to 3 meters. Equipped with an IPS display, it alerts the driver to blind spot conditions with green, yellow, and red alert boxes (accompanied by audible alerts).

Stable all-weather operation: For example, when an agricultural harvester is in muddy fields or a truck is reversing at night during a rainstorm, the millimeter-wave radar maintains stable data output. This is more reliable than cameras (which are easily obscured by mud and water) or the human eye, preventing accidents caused by weather.

Ideally suitable for: forklifts, large trucks, vans, buses, school buses, harvesters, coaches, and construction machinery.

Industry-specific attributes

TypeReversing system,11GHz millimeter-wave radar
Car Fitmentlarge trucks, trucks, buses, school buses, harvesters, bus construction machinery
Screen TypeIPS
FunctionBlind spot detection
Detection distancebetter than 0.1m, detection and alarm distance: 3m

Other attributes

Screen size7 inches

Resolution
1024 x 600 IPS
Power input9-36V wide voltage
Loop recordingNot supported
Image sensor1/2.7"" SC2238H
Video format NTSC/PAL
Resolution1920x1080/1280x720
Video output signal AHD
Exposure Auto, gain :Auto, white balance :Auto, low illumination :0.1Lux
Lens specification Waterproof /6 glass/Wide Angle horizontal 150˚
Rated working voltage 12V ~ 24V
Storage temperature -30˚ ̴ +75˚
Radar operating frequency band 10.4 ̴ 10.6 GHz
Horizontal Angle160˚, vertical Angle: 100˚

* The product specifications listed above are indicative only. For full details and technical documents, please reach out to our customer support.
