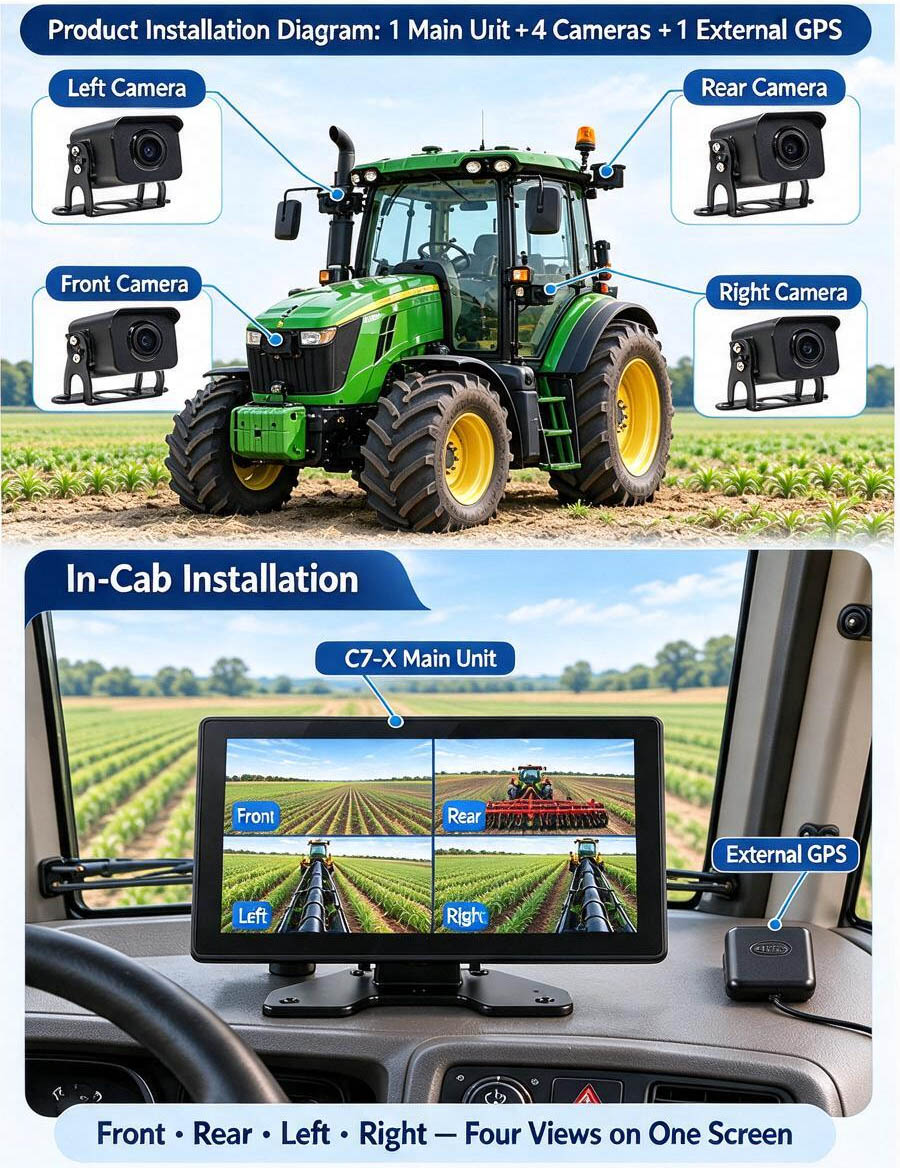

The C7-X is an all-in-one agricultural vehicle system that combines field area measurement, slope measurement, distance measurement, and four-channel video. It consists of a main control unit, four cameras, and an external GPS receiver.

Key Features

• All-in-one design: Measures area, slope, slope area, straight-line distance, and curved perimeter.

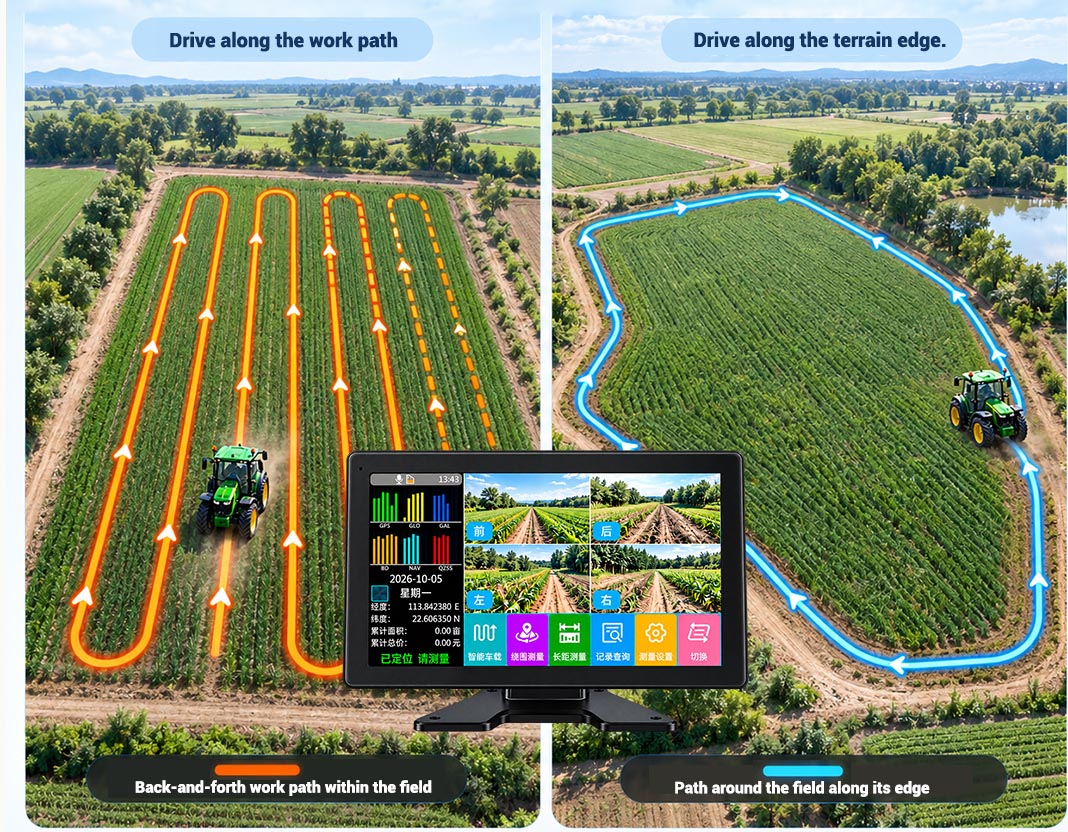

• Two area-measurement modes: Measure along your work path or trace the field boundary—ideal for different jobs.
• Works on irregular fields: Drive along the actual field edge to measure plots of almost any shape.
• Slope measurement support: Uses elevation changes to calculate slope and slope area, making it suitable for uneven terrain.
• Four-camera split-screen view: Front, rear, left, and right camera feeds are displayed together, reducing screen switching and improving visibility.
• In-cab installation and viewing: The main unit and external GPS are mounted inside the cab, keeping measurement and video information in one convenient place.

Measurement Method

• Power on the device in an open outdoor area. It will automatically search for satellites.
• Once satellites are acquired, enter the Smart Vehicle menu.
• First, set the harvester’s cutting width (i.e., the width of the blade), then press [Start] to begin measuring.
• The screen will display the travel path in real time.
• When the job is complete, press [End]. The device will automatically calculate and display the area in mu and square meters, as well as the total price.
